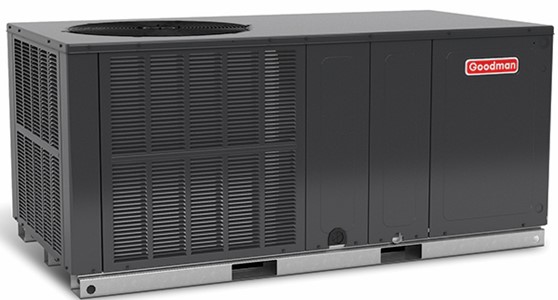

Goodman R-32 Medium Chassis Horizontal Airflow 4 Ton Heat Pump Package Unit 13.4 SEER2

Goodman R-32 Medium Chassis Horizontal Airflow 4 Ton Heat Pump Package Unit 13.4 SEER2

$5,350.00

Goodman GPHH3 Horizontal Packaged Heat Pump 13.4 SEER2, Single Stage Cooling, Multi Speed ECM, 4 Ton

SKU: GPHH34831

Categories: , Brand:

Goodman GPHH3 Horizontal Packaged Heat Pump 13.4 SEER2, Single Stage Cooling, Multi Speed ECM, 4 Ton

Product Benefits

  • Meets the 2023 M1 Test Standards

Product Features

  • Energy-efficient compressor
  • ECM indoor blower motor
  • Quiet horizontal discharge
  • Copper tube/aluminum fin coil
  • Totaly enoclosed, permanently lubricated condenser fan motor
  • Fully charged system
  • Eletric heat kit available as a field-installed option
  • AHRI Certified
  • ETL Listed

Product Cabinet

  • Heavy-gauge, galvenized-steel cabinet with Architectural Gray power-paint finish
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Fully insulated blower compartment with convenient access panels
  • Meets cavinate air leakage requirements when tested in accordance with ASHRAE standard 193
  • Louvered condenser coil protection
  • One footprint for all tonnages

Additional Information

Product Family
GPHH3_32
Product Series
GPHH3
Description
4.0t h-pkgd 13.4 seer2 hp R-32
Unit Type
Package Unit
Installation Type
Horizontal
Universal Product Code
663051741010
SEER Rating
13.4 SEER2
Communication Feature
No
Power Voltage
208/230 V
Power Frequency
60 Hz
Power Phase
1 Ph
Compressor Type
Scroll
Compressor Stages
Single Stage
Refrigerant Type
R-32
Tonnage
4
Dimensions - Unit Height
35 Inches
Dimensions - Unit Width
66 Inches
Dimensions - Unit Weight
415 LB
Warranty - Commercial
ALL PARTS - 5 YEARS PARTS
Warranty - Multifamily
ALL PARTS - 10 YEARS PARTS
Warranty - Residential
ALL PARTS - 10 YEARS PARTS

Cooling Capacities

Nominal Cooling Capacity
45000 Btu/H
Rated Cooling Capacity
45000 Btu/H

Specifications

Nominal Heating Capacity
42500 Btu/H
Rated Heating Capacity
42500 Btu/H

Product Certifications

CA Compliant
No
Energy Star Certified
No

Product Resources

Installation Manual
Download
Service Manual
Download
Warranty Certificate
Download
